// Thermal PCB Inspection
HotSpotter turns your USB thermal camera into a professional PCB inspection tool. Calibrated temperature readings, real-time thermal imaging, and multi-camera support — all in a clean Windows desktop app.
// Features
Built for electronics engineers who need accurate, actionable thermal data — not consumer gimmicks.

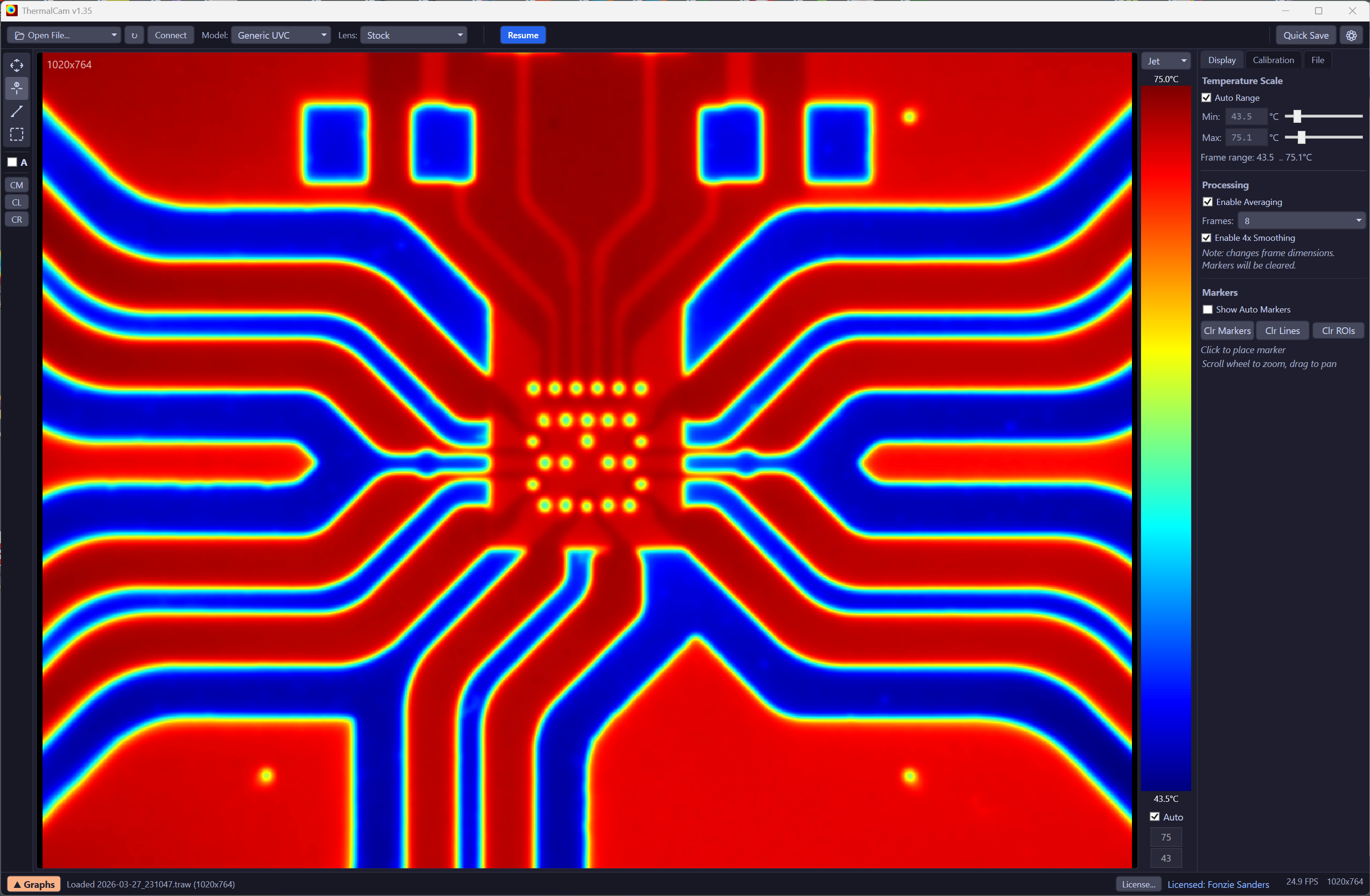

Real-time calibrated thermal imaging from your USB camera. Full-frame streaming with configurable color palettes to reveal temperature gradients the moment you point the camera.

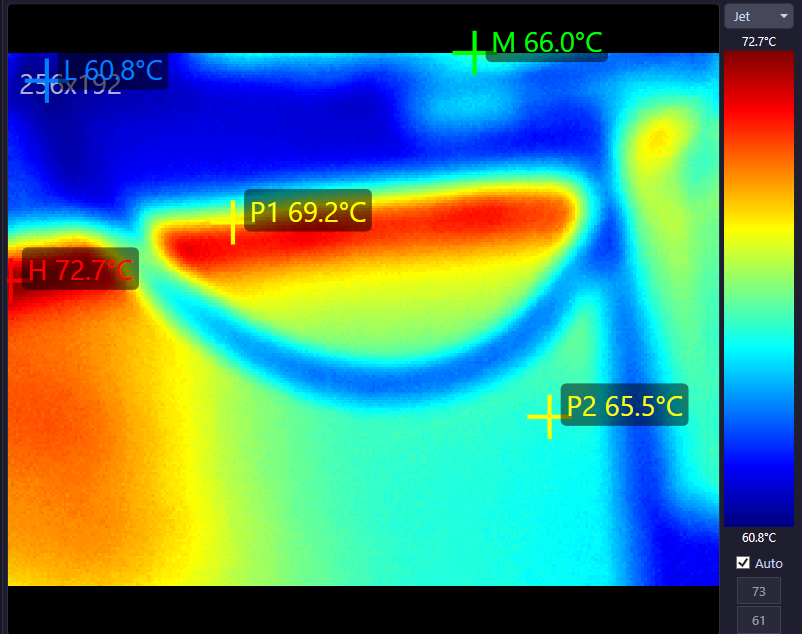

Pixel-accurate temperature measurement at cursor position. Uses proper raw sensor conversion (raw ÷ 64 − 273.15 °C) for scientifically meaningful readouts you can trust.

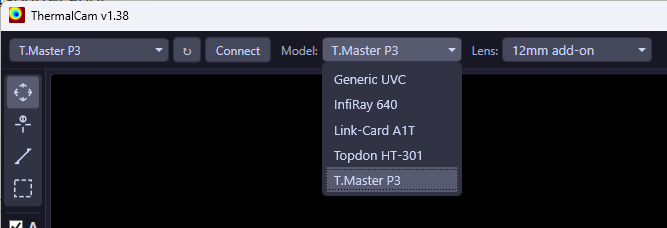

Works natively with InfiRay A1T, Topdon HT-301 (UVC) and Thermal Master P3 (vendor protocol), with more cameras being added. Plug in your hardware and HotSpotter handles the driver details.

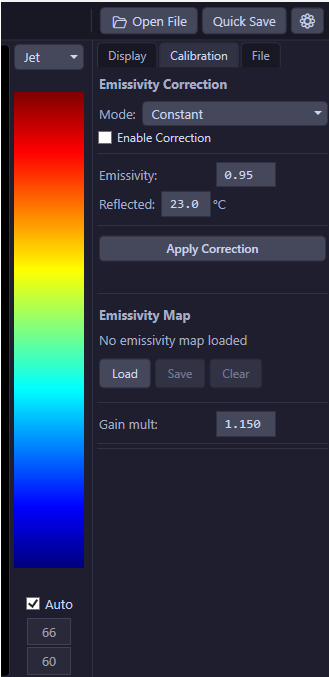

NUC (Non-Uniformity Correction) support for consistent flat-field thermal accuracy. Per-camera lens configuration presets with user-editable profiles stored locally.
// See It In Action
Pi 5 PMIC and surrounding components heating up — 4× speed
// Real-World Results

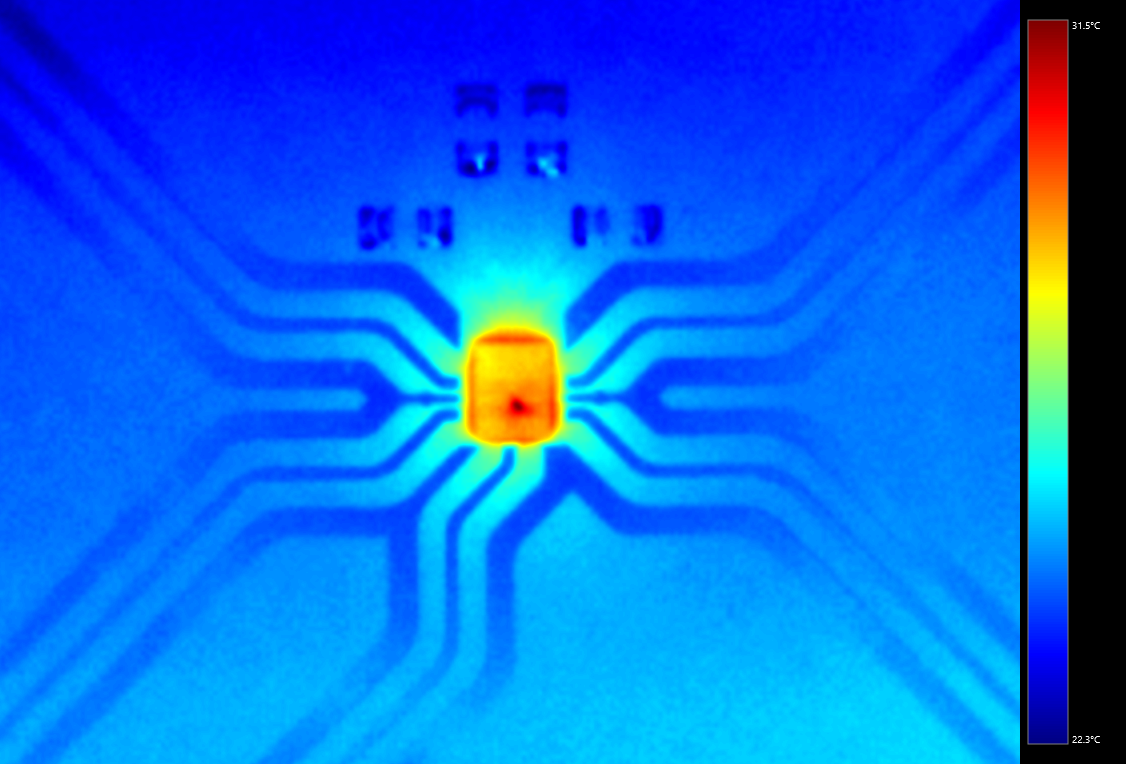

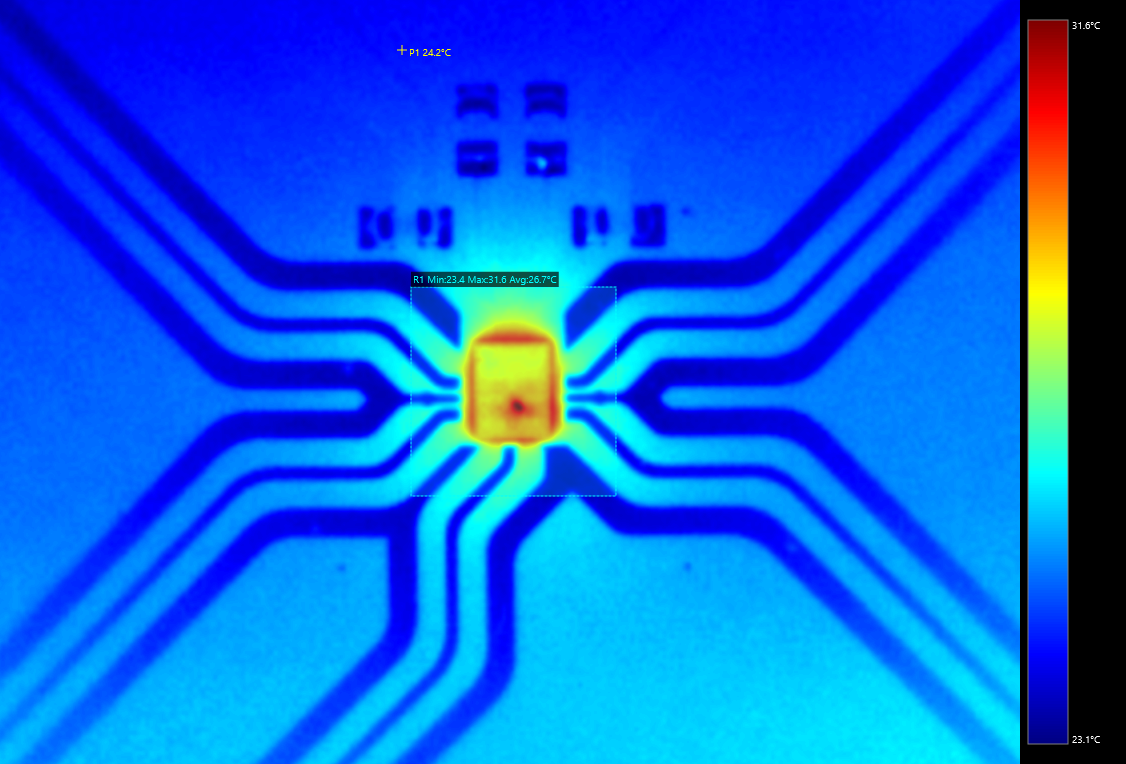

An SP4T RF switch in a flip-chip QFN package, with DC current applied through one path to generate localised heating. HotSpotter resolves individual bond pad traces and pinpoints the die hot spot through the package — the kind of measurement electronics labs run every day.
Click an image to enlarge
// The Platform

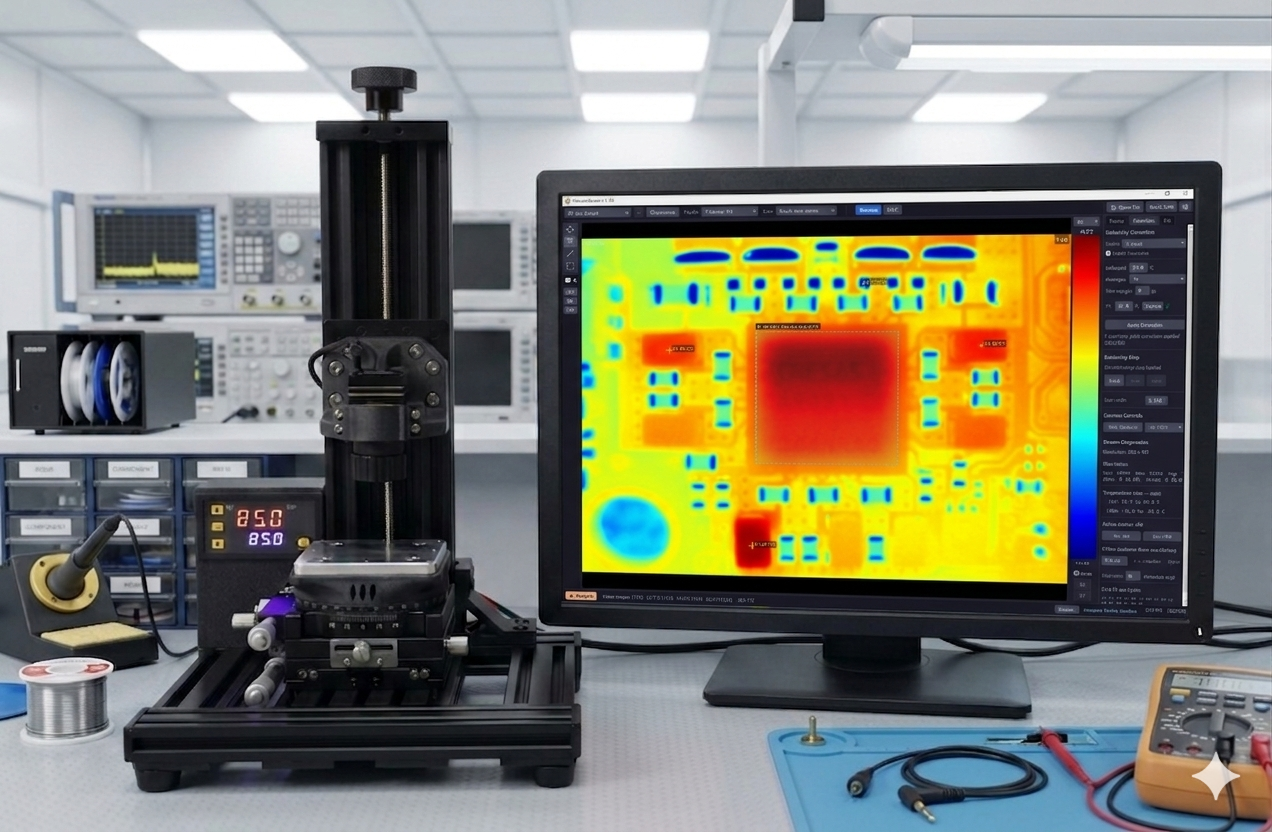

A purpose-built scanning platform for repeatable, calibrated thermal inspection. Precision motion, active thermal control, and a rigid aluminium frame — designed for the electronics lab bench.

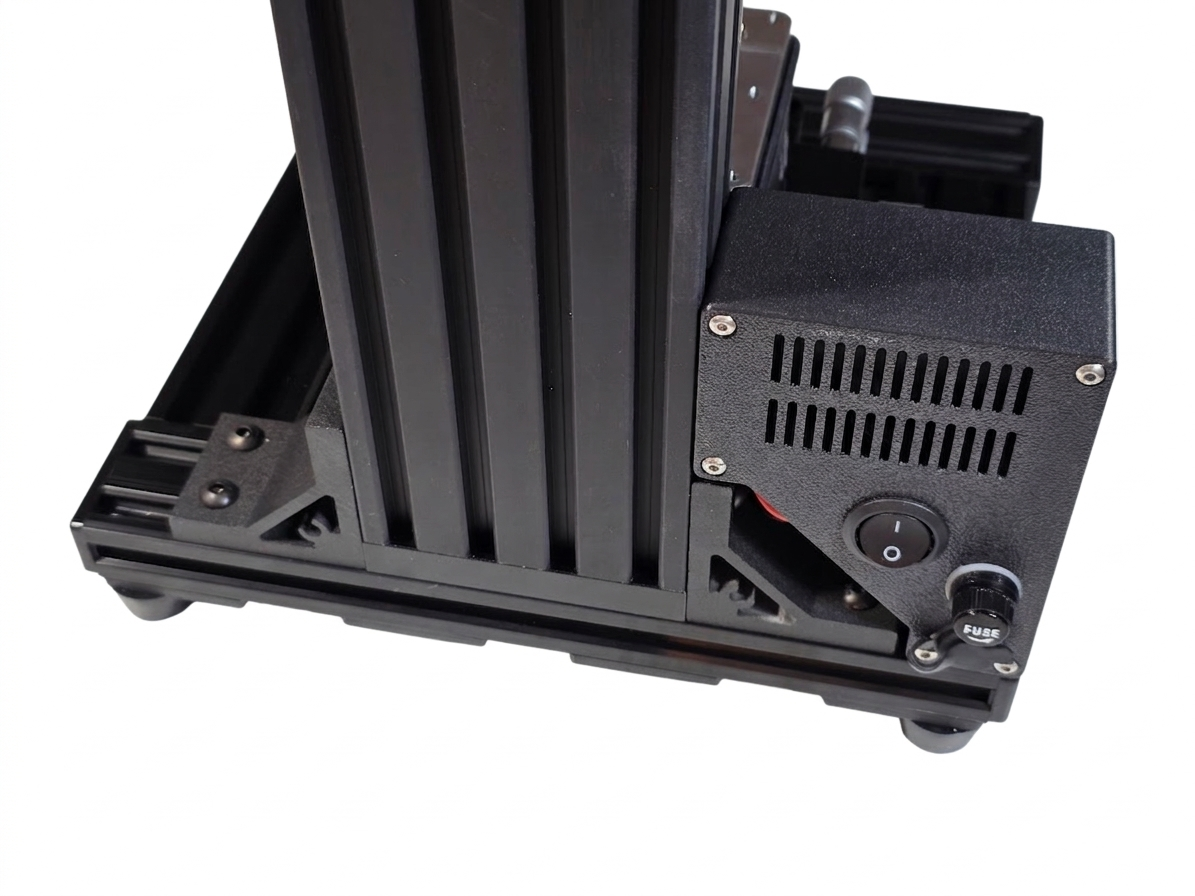

Built-in dual-readout temperature controller and mains power supply. Levelling feet and a low centre of gravity keep the platform rock-solid on any bench.

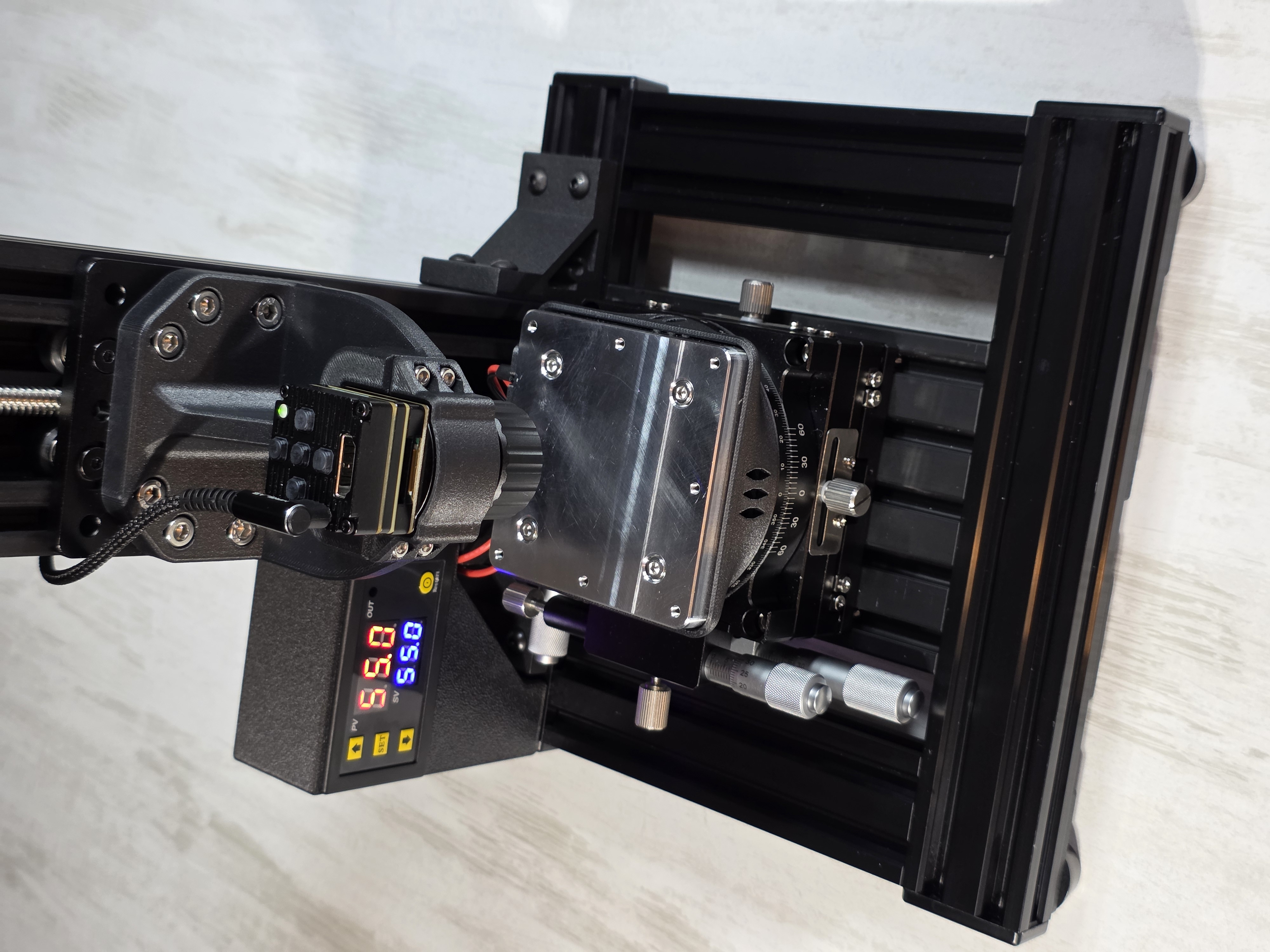

Ball-screw driven axes carry the thermal camera with sub-millimetre repeatability. Polished stainless hardware and anodised aluminium throughout.
240 × 230 × 390 mm aluminium extrusion. Low centre of gravity for vibration-free imaging.
Ball-screw driven axes with sub-millimetre repeatability. Backlash-free Z-axis focus.
Integrated temperature controller, 25–105 °C range. M3×0.5 mounting for DUT fixturing.
Single 12 VDC external supply. Built-in mains PSU and dual-readout controller.
Tell us about your setup and we'll be in touch with availability and pricing.
We've received your inquiry and will be in touch shortly.
// Supported Cameras
HotSpotter supports popular hobbyist thermal cameras out of the box. Don't see yours listed? Contact us — new camera support is actively being added.
Compact 256×192 USB thermal camera. Plug-and-play UVC class device — no custom drivers required on Windows 10/11. Units are manufactured by Link-Card and may carry InfiRay sensors.
UVC · USBHigh-resolution USB thermal camera with vendor protocol. 640×512 native resolution. Requires USB 3.0 for full frame rate.
Vendor Protocol · USB 3.0Compact 384×288 USB thermal camera with InfiRay sensor. UVC class device — works out of the box on Windows 10/11.
UVC · USBAdditional camera models are under development. Contact us with your camera model to request support.
Request via email// Pricing
Machine-locked license key. No account needed. Hardware sold separately — contact us to enquire.
HotSpotter Annual
Per year · Machine-locked · One seat
HotSpotter Lifetime
One-time · Machine-locked · One seat
Join the mailing list for hardware kit availability
// Getting Started
Manual license activation keeps things simple and secure. No account needed.
Complete checkout and download the HotSpotter installer from the link in your confirmation email.
Install and launch HotSpotter. Open the License dialog from the Help menu and copy your unique Machine ID.
Email your Machine ID to [email protected]. Receive your license key within 24 hours. Enter it once and you're done.
// System Requirements
HotSpotter is a lightweight Windows desktop application with minimal dependencies.
Operating System
Windows 10 or 11
USB
USB 3.0 port
Camera
Supported thermal camera
